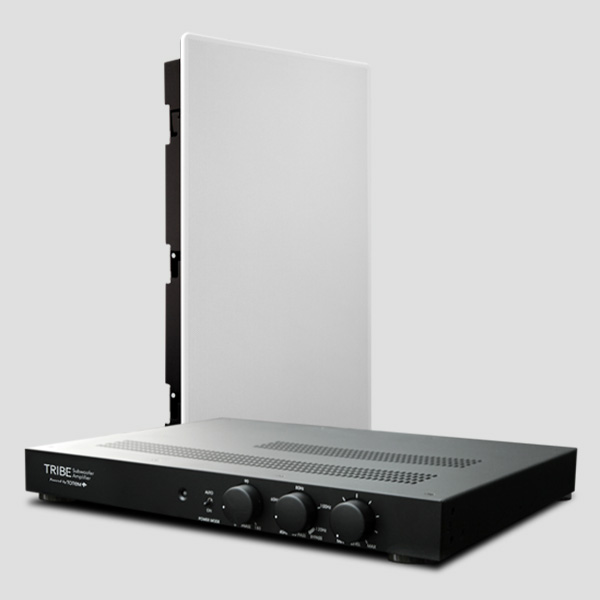

TO TRIBE IN-WALL SUB 8"
Bass without a box in the room. The Double 8 puts two active 8-inch ballistic carbon-fibre drivers in a sealed in-wall enclosure and does without passive radiators, which is what keeps the opening down to 315 x 569 mm and the depth to 96 mm — a normal stud bay. It reaches 26 Hz, driven by the 500-watt Totem amplifier that comes with it: level, a 40-120 Hz low-pass, continuously variable phase, an auto-on mode, and rack ears in the box. Two of them can share one amplifier when wired in parallel, which is the tidy answer to a wide room. One installation rule Totem are firm about: fix it to wood studs, not aluminium.
Specifications
| Design | Full back-boxed, high-performance loudspeaker. Two Double 8 subwoofers can be connected to one Tribe Amplifier if they are wired in parallel. Must be affixed to wood studs, not aluminum |
|---|---|
| Woofer | 2 x 8″ / 20.32 cm ballistic carbon fiber cone |
| Frequency response | 26 Hz – 200 Hz |
| Recommended power | Supplied 500 W external Totem amplifier |
| Speaker terminals | gold plated 5 way banana plugs |
| Phase | 0° – 180° continuously variable |
| Low-pass filter | variable from 40Hz – 120Hz, Bypass when turned completely to the right |
| Amplifier power | 500 watts |
| Analog inputs | 1 Pair RCA |
| Outputs | 1 Pair RCA |
| Subwoofer output | 1 Pair Binding Posts |
| Volume control | Adjusts Input Signal Level/Volume |
| Controls | Logo Power Indicator: Red in standby and Blue when active, fading after 30 seconds | Power Switch | Model Select Switch: Tribe In-wall Sub 8 – select SUB8, Tribe In-wall Sub 12 – select SUB12 |
| Power modes | On/Auto Switch |
| THD | <0.1% @ Maximum Rated Output Frequency response: 20Hz – 200Hz Input Impedance: >20 kΩ |
| Mains connection | Connector: 100-120 V / 220-230 V – Auto Sensing | Fuse holder: T5AL, 250 Volt |
| Cutout | 12.4″ x 22.4″ / 315 x 569mm |
| Grille | magnetic, paintable, virtually bezel-less white metal (grills may be painted to match your decor). Amplifier and rack ears included |
| Dimensions | Sub: 14.44″ x 23.5″ x 3.78″ / 366.7 x 596.9 x 96mm | Amplifier incl. feet: 17” x 2.25” x 14” / 43.18 x 5.715 x 35.56 cm |
| Width | 19” / 48.26 cm |
| Weight | Sub: 22lb / 9.98kg | Amplifier net: 6.8 kg (15 lbs.) |
| Finishes | Satin White | Satin Black |
