Totem Acoustic
TO KIN INWALL V2

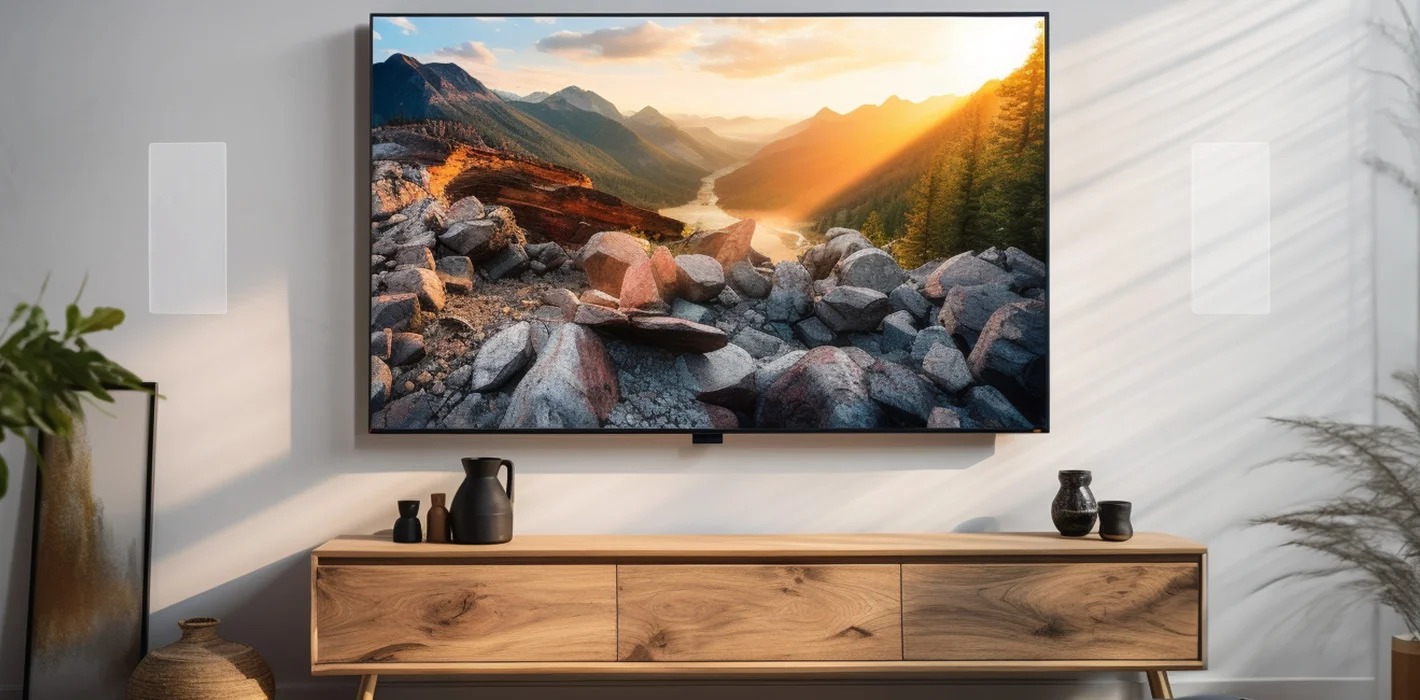

The Kin Architectural IW is the workhorse of the range: one compact box, mounted upright as a front left or right, on its side as a centre, or high on a wall as a surround. Twin 4-inch MHEX woofers flank a titanium-infused dome, all sealed into an integrated wood back box, so it sounds the same whether the cavity behind it is insulated, empty or shared with a bedroom. The numbers an installer needs: 370 x 162 mm cutout, 95 mm deep, 30 to 120 watts, 90 dB. Bass starts at 69 Hz, so this is a speaker you specify together with a subwoofer — and the reward is a full-range system with nothing in the room but a paintable grille.
Specifications
| Design | Full back-boxed, high-performance loudspeaker |
|---|---|
| Woofer | Twin 4”/10.16cm MHEX Phenolic Honeycomb Woven Hybrid woofer in die-cast basket |
| Tweeter | 1”/2.54cm Titanium Infused Soft Dome |
| Frequency response | 69 Hz – 25 kHz ± 3 dB |
| Impedance | 6 Ohm |
| Sensitivity | 90 dB |
| Recommended power | 30 – 120 W |

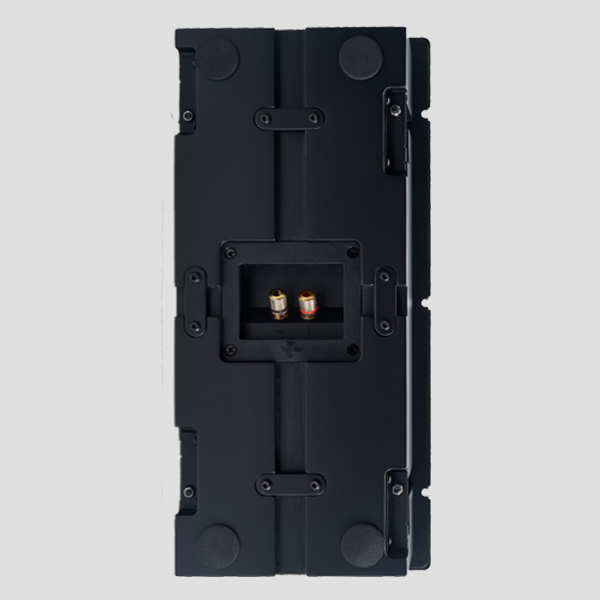

| Speaker terminals | 5 way gold plated |
| Cutout | 14.56″ x 6.37″ / 370 x 161.8mm |

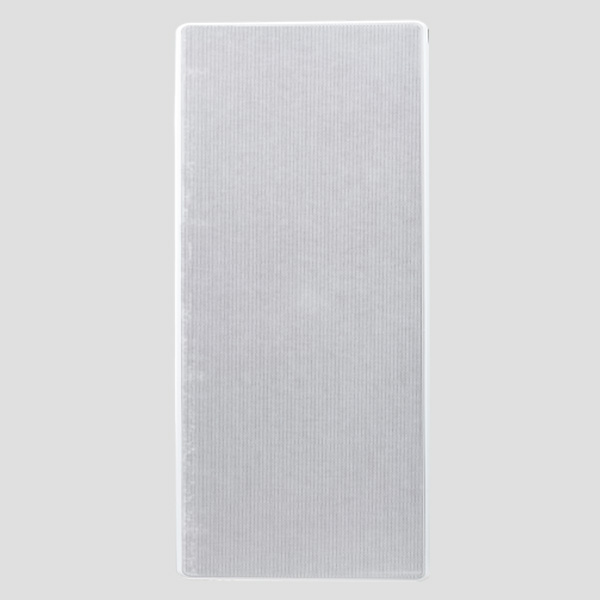

| Grille | magnetic, paintable, virtually bezel-less white metal |
| Dimensions | 15.27″ x 7.09″ x 3.75″ / 388 x 180 x 95.25mm |
| Accessories & options | Pre-construction brackets |
