Totem Acoustic
TO TRIBE ANGLED V2

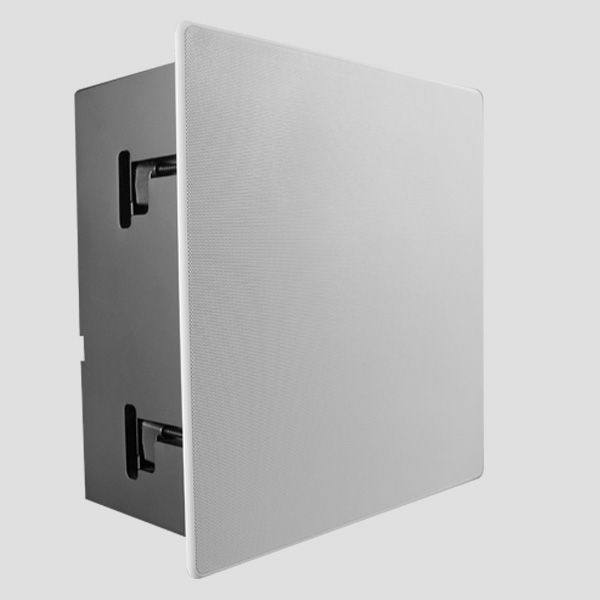

The same 340 mm hole as the Kin AIC, a deeper box, and a different level of ambition. The Tribe Architectural AIC borrows from Totem's Element work: neodymium-actuated MHEX woofers, a 29 mm soft dome built around a Mundorf diaphragm, and a crossover hand-assembled from parts you would expect to find in a floorstander. It runs from 47 Hz to 30 kHz, takes 140 watts and offers two sets of terminals if you want to bi-wire. The angled baffle still aims the sound at the seats; the reason to choose this one over the Kin is tone — voices and strings arrive with the body a good stand-mount gives them. Allow 155 mm of depth, and add a Tribe in-wall sub when films are part of the brief.
Specifications
| Design | Full back-boxed, high-performance loudspeaker |
|---|---|
| Woofer | Twin 4”/10.16 Neodymium Actuated, Enriched MHEX woofers with High Excursion Surrounds in Outsized Cast Baskets |
| Tweeter | Huge 1 1/8”/29mm Soft Dome |
| Passive radiators | Dual 5″ Metal Amalgamation Compound |
| Frequency response | 47 Hz – 30 kHz ± 3 dB |
| Impedance | 6 Ohm |
| Sensitivity | 90 dB |
| Recommended power | 30 – 140 W |
| Cutout | 13.38 x 13.38 / 340 x 340mm |
| Grille | Magnetic, Paintable, virtually bezel-less white metal |
| Dimensions | 14.09″ x 14.09″ x 6 1/8″ / 358 x 358 x 155 mm |
| Accessories & options | Pre-Construction Brackets |
